Efficient Print Trim and Matrix Removal
Continuously remove trim waste and matrix directly from the printing press
With the BloApCo Bagclone system, trim waste and matrix are continuously removed directly from the printing press, shredded by inline cutters and air-conveyed to a collection area.
The Bagclone system is an efficient, cost-effective and proven solution for managing waste, with a simplistic configuration for easy installation and setup.
Ideal for pressure-sensitive tag and label applications, foil, laminates, paper and plastics up to 508mm thickness. The system is engineered to handle high web speed with high air capacity (up to 1,000 cfm), high air velocity and up to 3,600 rpm.
With 1 HP of cutting power and progressive shear action, NEOR knives cut all materials, ranging from very thin foils to thick, sticky materials.
The Bagclone works like a powerful vacuum:

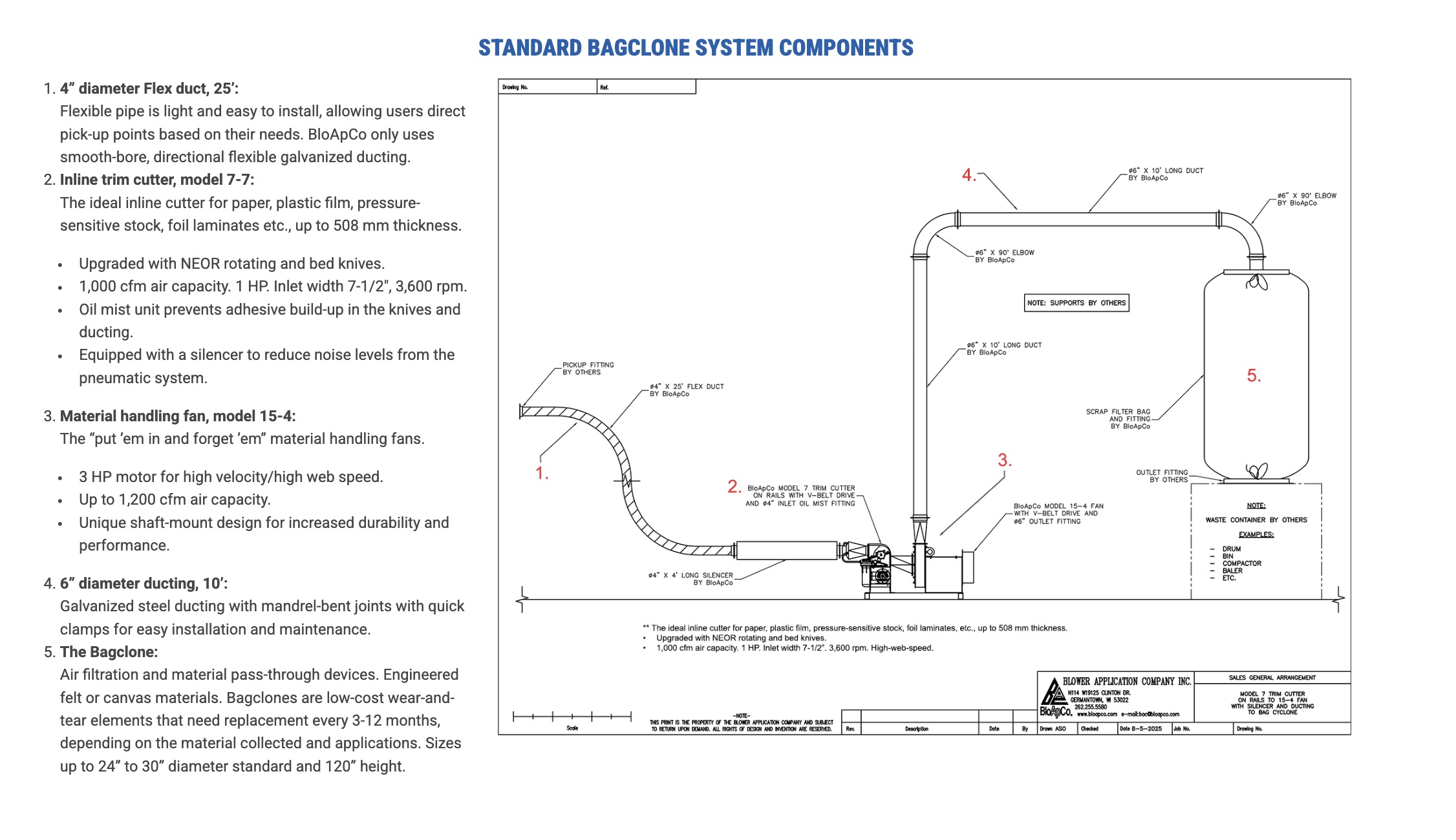

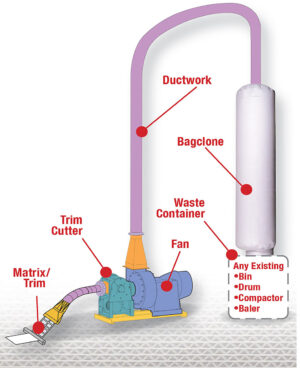

Edge trim and matrix waste are picked up directly from the press through flexible pipes, sucked into an inline trim cutter, shredded by powerful rotating knives and air-conveyed by a material handling fan through ducting to the Bagclone device.
The Bagclone device exhausts the air volume and velocity, acting as a cyclone, discharging the shredded material to the waste collection area.

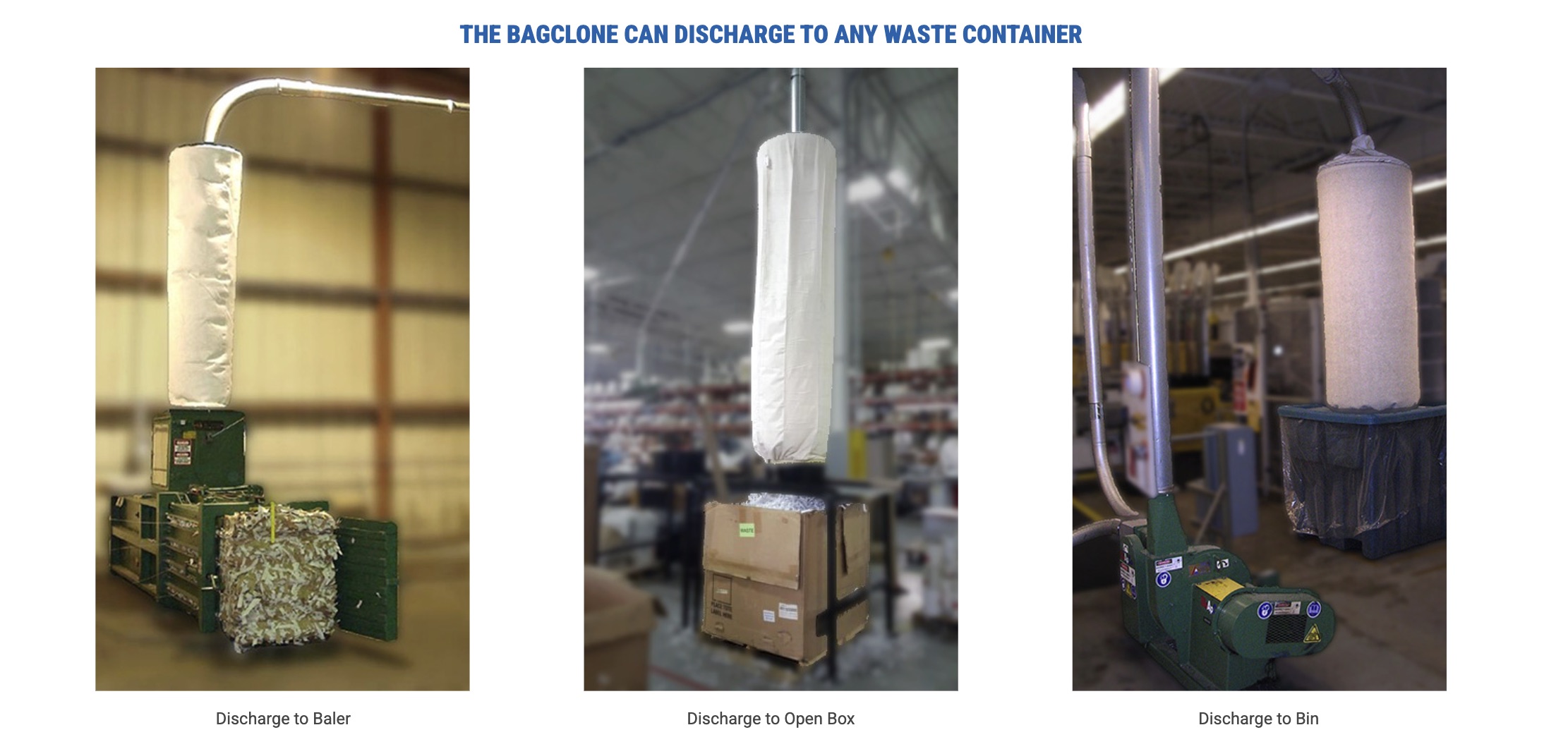

The system can be easily scaled or integrated into a central collection area, and is adaptable to almost any waste container, such as bins, drums, compactors and balers.
It can be set up as a stand-alone solution or scaled up to multiple pick-up points to a centralized collection area.
Bagclone Summary
The BloApCo Bagclone system allows tag and label manufacturers to optimize productivity, lower operating costs and maximize earnings.
- Maximize converting efficiency: Continuously remove trim and matrix, allowing the press to run faster with a thinner matrix. Eliminate unnecessary stops to deal with waste.
- Built to perform: Trim cutters and material fans are dimensioned to scale up pressure-sensitive applications and exceed specifications on the most demanding materials and adhesives.
- Built to last: For more than 90 years, BloApCo’s reputation for performance, endurance, quality, and durability has been stronger than ever.
- Lowest Total Cost of Ownership (TCO): Low investment, financial options for tax deductions opportunities, the lowest maintenance cost in the market are key for quick Return On Investment.
About BloApCo
Since 1933, BloApCo has been a leading manufacturer of industrial waste management equipment, and has earned a reputation for setting quality standards and offering unrivaled product performance and endurance.
BloApCo inline cutters have set the industry benchmark for decades. With a 1,000 cfm to 4,500 cfm air capacity, light to heavy-duty construction for the toughest applications, and a selection of knives made of super alloys, BloApCo Trim Cutters are proven to remain sharp and in service the longest.
